Synergy Energy Solutions: Perlite Insulation
Maximum Efficiency: Natural Perlite Insulation for Water Underfloor Heating
Stop losing energy to the ground.
Our Perlite Insulation solution is the high-performance, lightweight, and non-combustible insulation choice for modern underfloor heating systems.
Why Insulation is Critical
- The Invisible Thief: Why Standard Insulation Fails Your Investment without superior insulation, your expensive underfloor heating system is fighting a constant battle against the ground itself. The Problem: Up to 30% of your carefully generated heat can be lost downwards into the concrete sub-floor or ground. This forces your heat pump or boiler to work significantly harder, dramatically increasing your energy bills and operational costs.
- The Solution: You need a high-performance thermal barrier that actively directs 100% of your heat where it belongs—upwards.
- What We Offer: At Synergy Energy Solutions we specialize in the supply and installation of Perlite floor insulation to reduce heat loss through the concrete slab. Ensuring optimal performance on your underfloor heating system.
Introducing Synergy Energy Solutions Perlite Insulation:
- High-Performance, Low-Loss our solution utilizes SUNPERL®-based Perlite-Cement screed, transforming a standard construction material into a highly effective thermal break. Perlite is an inert, odorless mineral that is 100% safe to use.
- When heated, the crude rock expands to create countless tiny, glass-sealed air bubbles, which account for its amazing light weight and exceptional physical properties.
- This lightweight, expanded natural volcanic rock is precisely what makes it a superior choice for minimizing heat loss.
Schedule a free site assessment today.
Perlite vs. Polystyrene: The Smart Investment
A Long-Term Value Comparison
While the initial cost of SUNPERL® Perlite cement screed is competitive (approx. R 159/m² for 20mm vs. R 145/m² for Polystyrene), the true savings are found in the lifetime of your system.
| Feature | SUNPERL® Perlite-Cement Screed | Standard Polystyrene (EPS/XPS) | Advantage of Perlite |
|---|---|---|---|
| Thermal Conductivity (k-value) | 0.09 to 0.14 W/m·K | Typically, 0.030–0.035 W/m·K | Less thermal bridging & better performance where the screed is in direct contact with pipes. |
| Screed Cost Implication | Lower additional screed thickness with no need for reinforcement in the screed. | Higher cost on top screed and reinforcing mesh and thicker floor screed is required. | Reduces overall floor build-up complexity and cost. |
| Compressive Strength & Stability | High. Provides a highly stable substrate for the final floor finish. | Moderate. Lower density grades may require reinforcement against high loads. | Peace of mind for Architects and Builders regarding floor durability. |
| Fire Safety | Non-Combustible (Mineral-based) | Combustible (Petroleum-based) | Safety first: Meets stringent modern building regulations. |
| Weight | Lightweight (Density as low as 240 kg/m3) | Lighter than Perlite screed but when you include the thicker screed and reinforcing total weight is higher than perlite screed. | Reduces dead load on building structures – a major plus for Developers. |
| Environmental | Eco-Friendly: Natural, non-toxic, volcanic mineral | Manufactured (Petroleum-based) | Appeals to Homeowners seeking sustainable materials. |
Homeowners
Maximize the efficiency of your underfloor heating system, ensuring the water runs at lower temperatures for the same warmth, leading to immediate energy savings.
Architects & Developers
The lightweight nature of Perlite screed (density as low as 32-240 kg/m3) reduces the structural weight while offering excellent fire protection (Class 0, non-combustible).
Builders
Our SUNPERL® mixture is easy to work with on-site, providing a high-strength, stable base for your screed layer without necessarily requiring additional reinforcement mesh or thick screeds.
Perlite: Performance You Can Trust
What is Perlite? It’s a non-toxic, naturally occurring siliceous volcanic rock that expands dramatically (4 to 20 times) when heated above 870 °C, creating countless tiny, glass-sealed air bubbles that account for its amazing lightweight and insulation properties.
SUNPERL® Loose Fill k-value: 0.04 to 0.05 W/m K.
SUNPERL®-Cement k-value: 0.09 to 0.14 W/m K (compared to 0.72 W/m K for ordinary cement plaster with sand aggregate).
SUNPERL®-Cement k-value: 0.09 to 0.14 W/m K (compared to 0.72 W/m K for ordinary cement plaster with sand aggregate).
Schedule a free site assessment today.
Perlite Screed Application Process

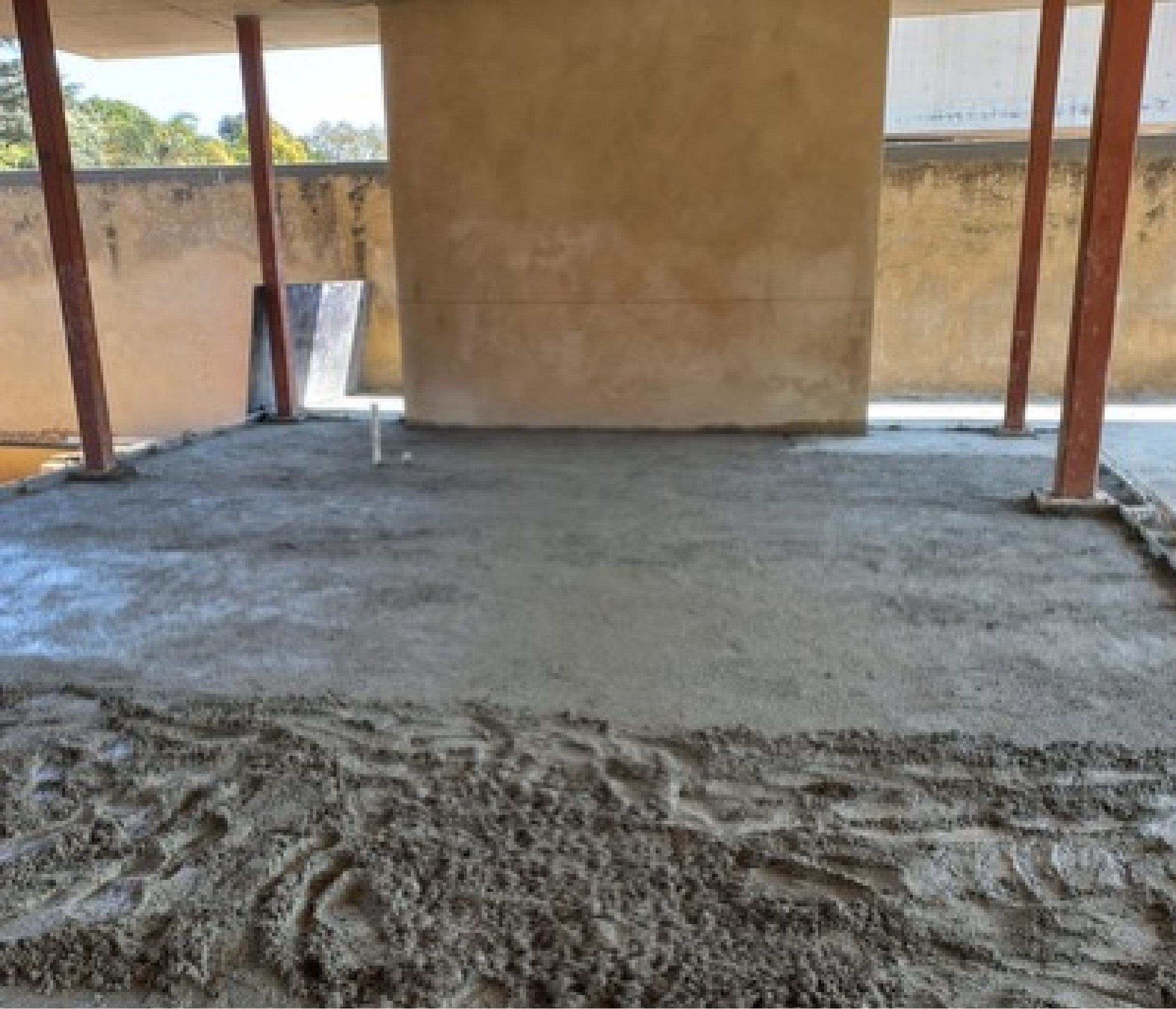

Step 1
Perlite and Cement is mixed together, and bonding liquid is added to ensure proper adhesive to the concrete slab

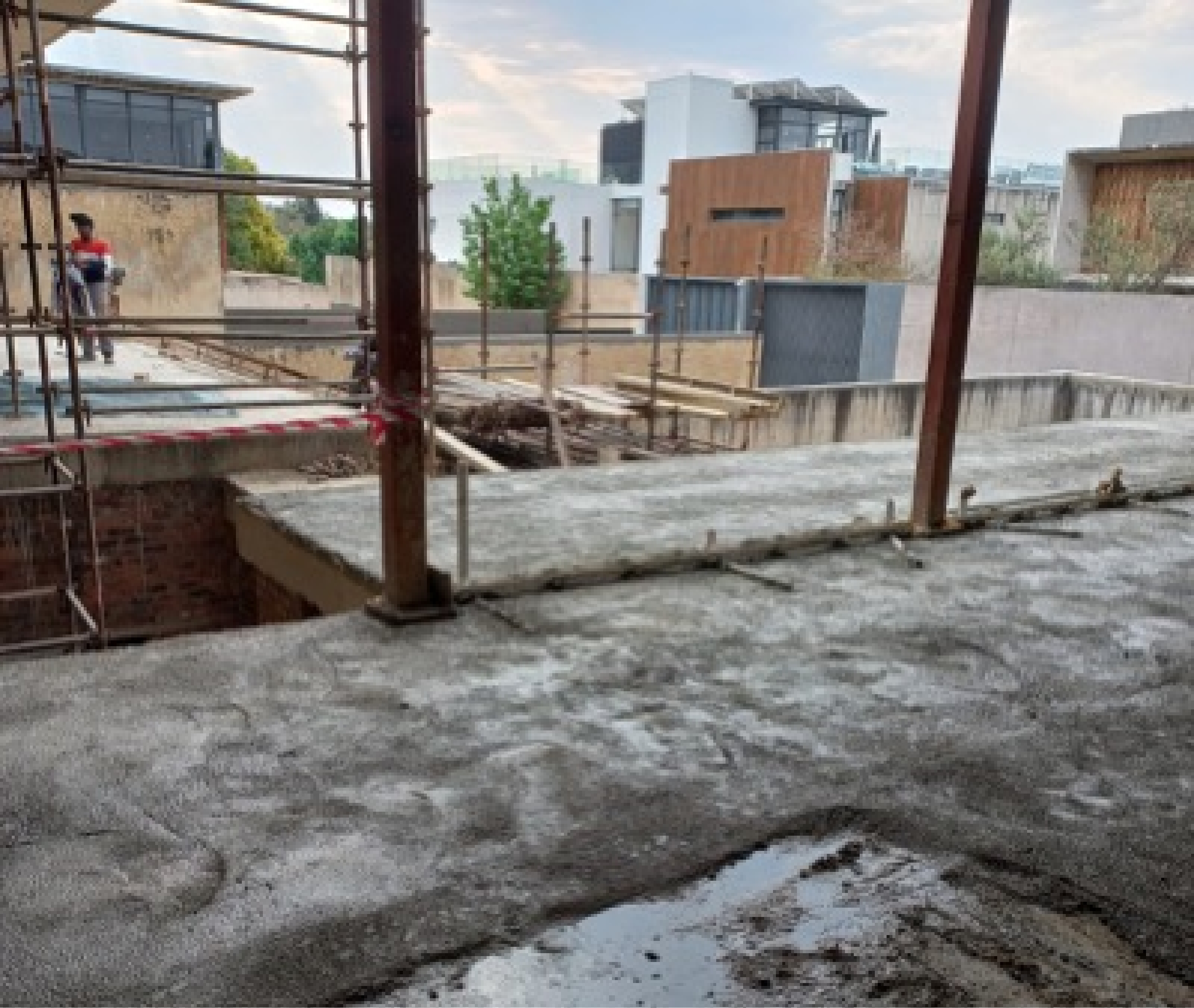

Step 2
More bonding liquid is slushed onto the concrete slab before applying the 20mm perlite screed

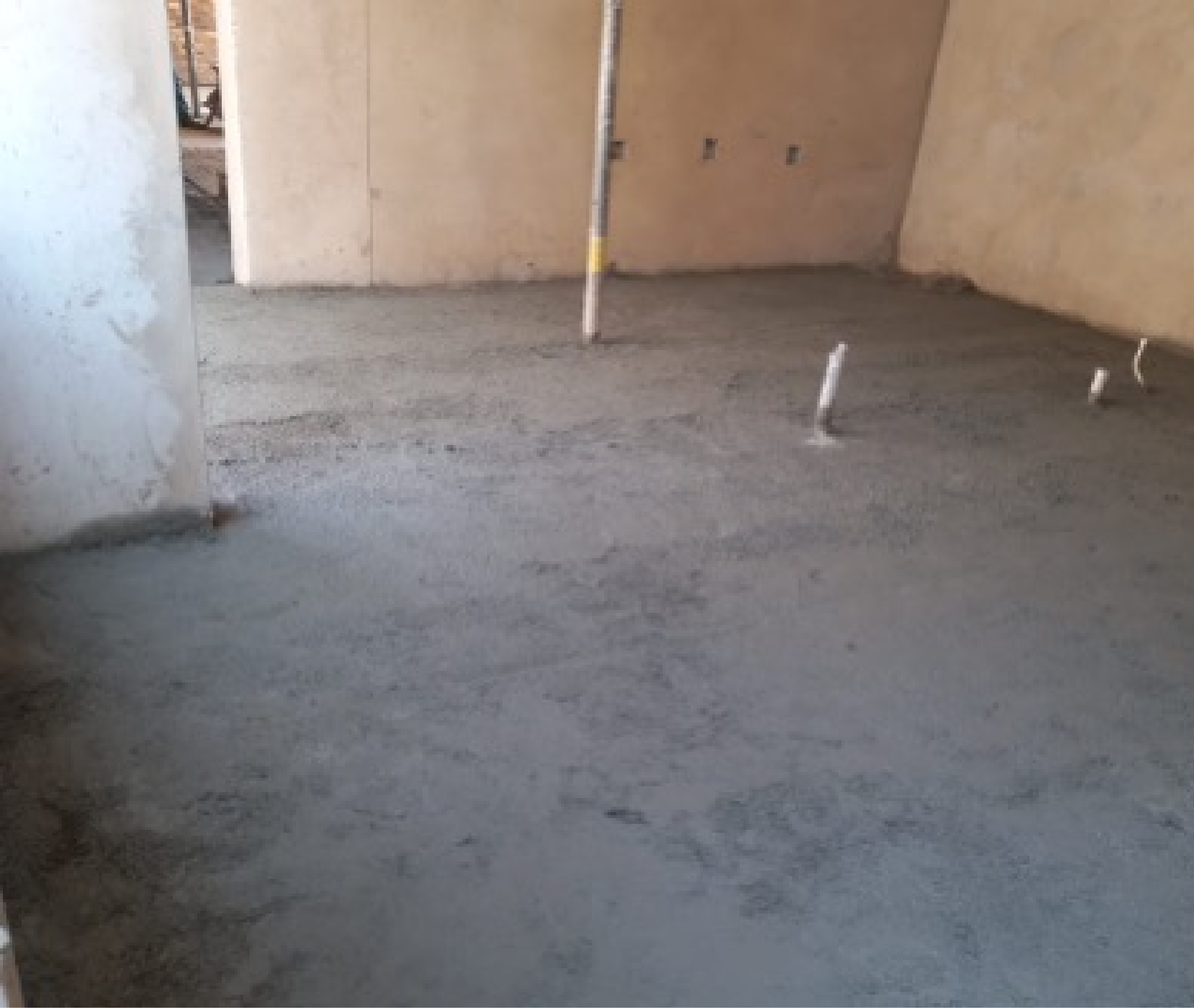

Step 3
After applying the perlite screed a curing time of between 10 to 14 days to ensure adequate strength to fasten Underfloor heating pipes
Step 4
After the curing of the perlite insulation screed the underfloor heating pipes are fastened on to the screed by means of nail and saddles to hold the pipes in place.
FAQ’s
What is Perlite insulation?
Perlite is a naturally occurring, non-toxic volcanic rock that expands up to 20 times its original volume when heated above 870%. The expansion process forms millions of glass-sealed air bubbles, resulting in outstanding lightweight and insulating characteristics.
Why is insulation essential for water underfloor heating?
Without high-performance insulation, up to 30% of heat generated may be lost downward into the concrete subfloor or ground, causing the heating system to operate less efficiently and increasing energy costs significantly.
Is Perlite comparable in strength to traditional sand and cement screeds?
Yes. When combined with cement (42.5N grade recommended), SUNPERL® produces a stable and durable insulating concrete that serves as a solid, load-bearing substrate for final floor finishes, mitigating the compression risks often associated with foam boards.
What is the cost per square meter for Perlite insulation?
A 20 mm thick layer of Perlite insulation incurs a cost of approximately R 159.00/m² installed. Although slightly higher than Polystyrene (about R 145.00/m²), Perlite frequently negates the need for costly reinforcing mesh and allows for thinner top screeds, often increasing overall cost-effectiveness.
Is Perlite environmentally friendly?
Certainly. Perlite is acknowledged within the environmental sector as a sustainable, high-performance solution. Its mining and processing have minimal environmental impact, and it is entirely safe and non-toxic for use.
Does Perlite absorb water or deteriorate over time?
No. Perlite is an inert mineral and will not rot, decay, or attract vermin. It preserves both its structural and thermal integrity for the lifetime of the building.
How does its weight compare to a standard floor screed?
Standard sand/cement screeds are notably heavy. Expanded Perlite can be manufactured to weigh between 32 kg/m3 and 240 kg/m3, substantially reducing dead load on the structure—a significant advantage for multi-story buildings.
How does Perlite's thermal performance compare to conventional materials?
Perlite demonstrates markedly superior thermal properties. While standard plaster sand possesses a thermal conductivity (k-value) of 0.4 W/m.K, loose SUNPERL® achieves values between 0.04 and 0.05 W/m.K making it 8 to 10 times more effective in preventing heat loss.
Is Perlite fireproof?
Yes. As a mineral-based volcanic glass, Perlite is non-combustible and does not emit toxic fumes, distinguishing it from many plastic-based insulation alternatives.
Can I use Perlite to insulate the walls of my house?
Yes, perlite can be used to plaster walls and insulate concrete roofs for improved thermal insulation.
Who can I contact to assist me with my enquiry?
Synergy Energy Solutions will be able to assist you with recommendations, design and costing for the application of the Perlite Insulation.
